FOKKER 100 GENERAL.



TECHNICAL DATA.

WINGSPAN 28.076 m 92 ft 1.35 in
LENGTH 35.53 m 116 ft 6.75 in
HEIGHT 8.505 m 27 ft 10.83 in
ENGINE ROLLS ROYCE TAY 620-15 6288 kg 13850 lbs
OPTION ROLLS ROYCE TAY 650-15 6855 kg 15100 lbs
MAXIMUM INDICATED SPEED 320 kts 0.77 MACH
CEILING 11285 m 37000 ft
RANGE 2700 km 1680 nm
MAXIMUM PASSENGERS 119



WEIGHTS.

WEIGHTS STANDARD INTERMEDIATE HIGH GROSS WEIGHT
MAX TAKE OFF 43090 kg 44450 kg 45810 kg
MAX LANDING 38780 kg 39915 kg 39915 kg
MAX ZERO FUEL 35835 kg 36740 kg 36740 kg
OPERATING EMPTY 24272 kg 24727 kg 24747 kg

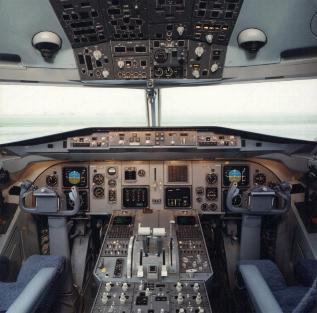

FOKKER 100 FLIGHT DECK.

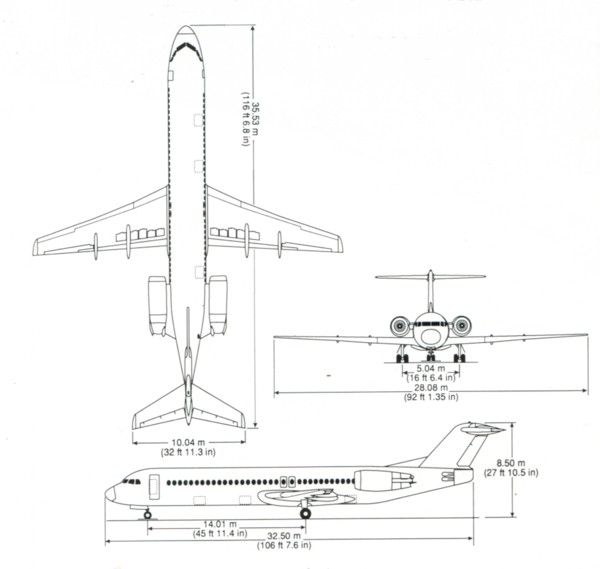

FOKKER 100 DIMENSIONS.

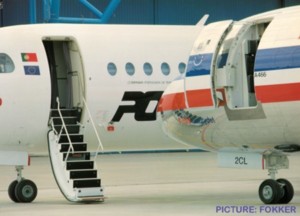

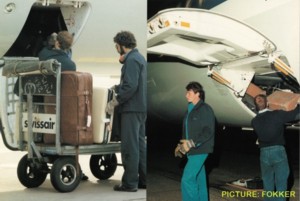

TYPES OF ENTRY AND CARGO DOORS.
